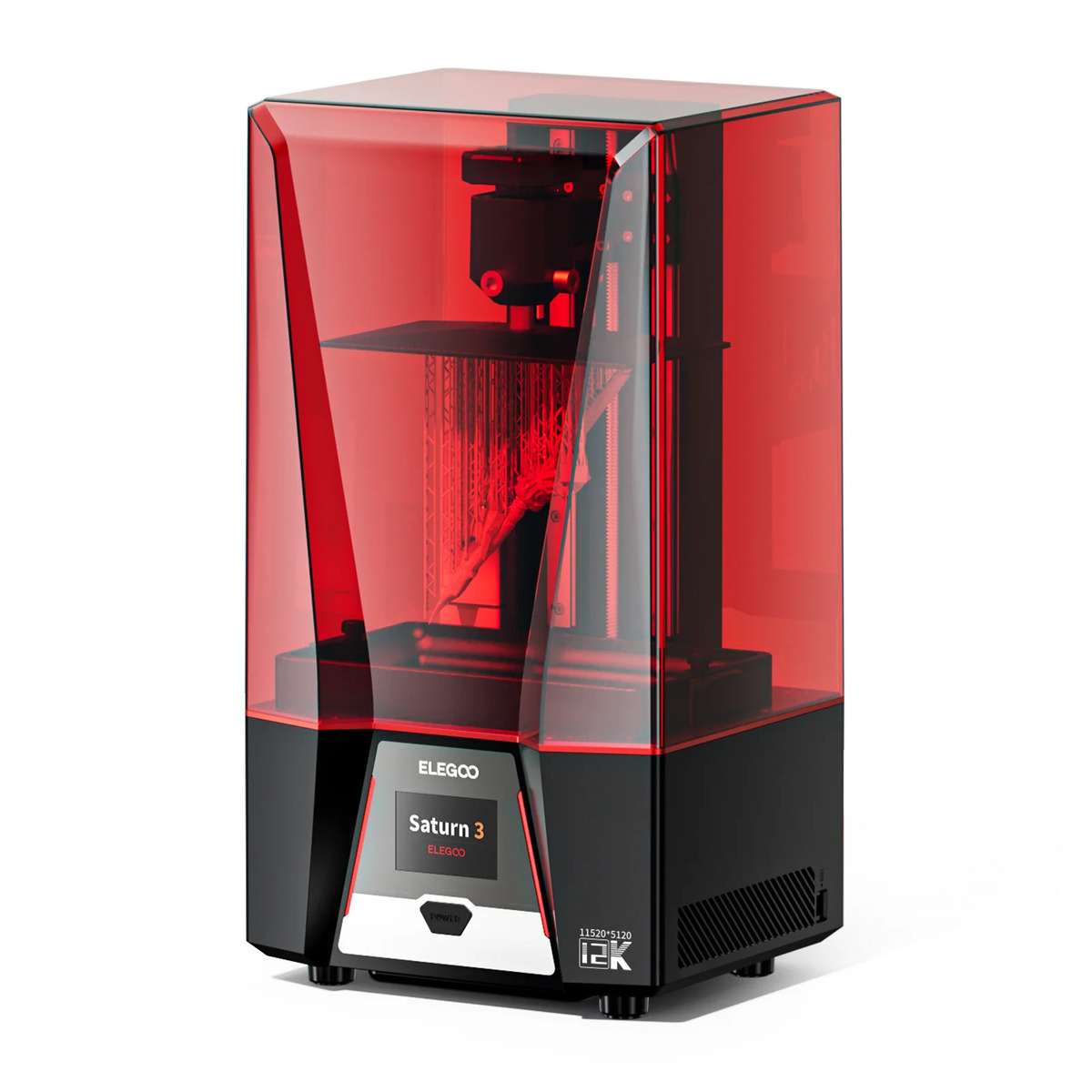

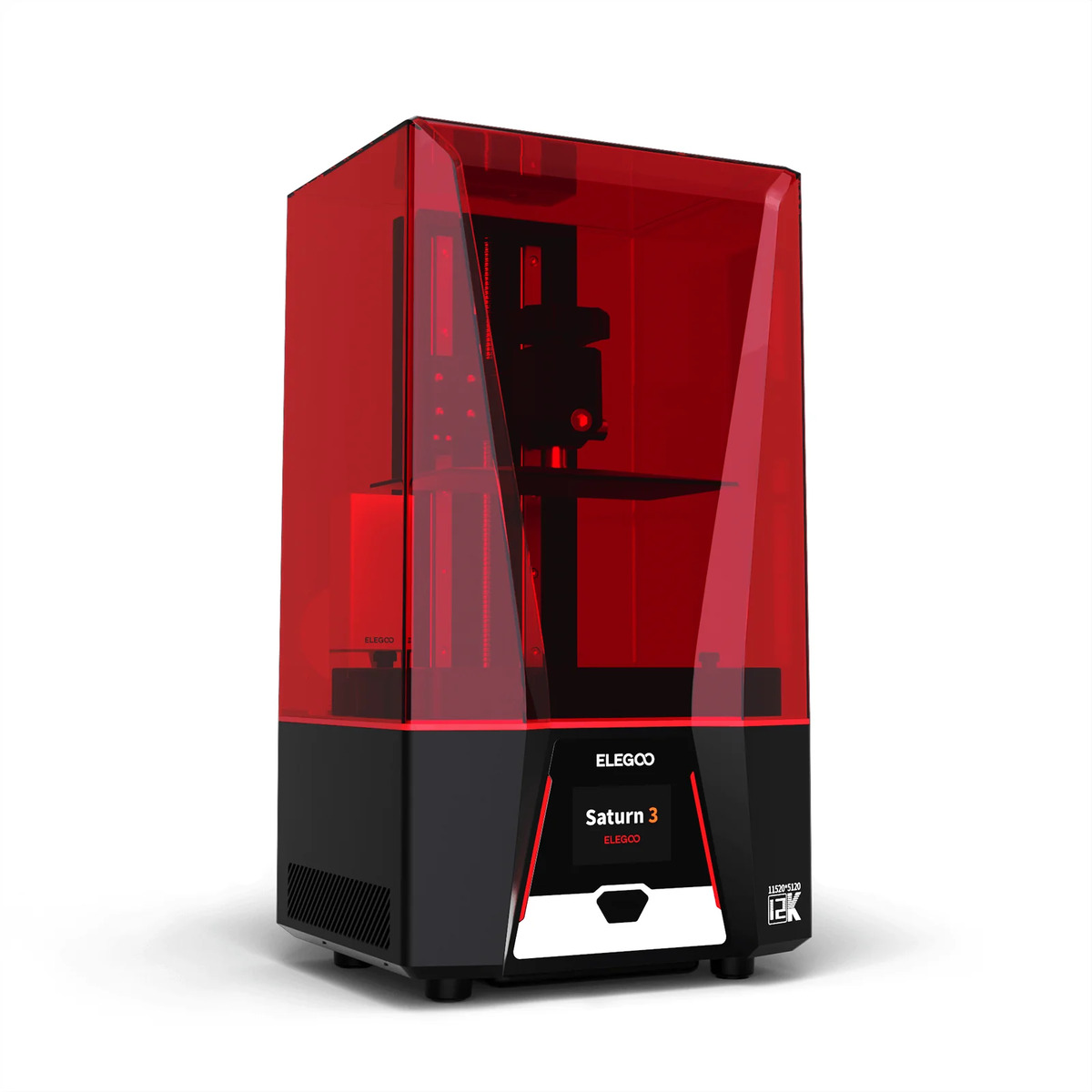

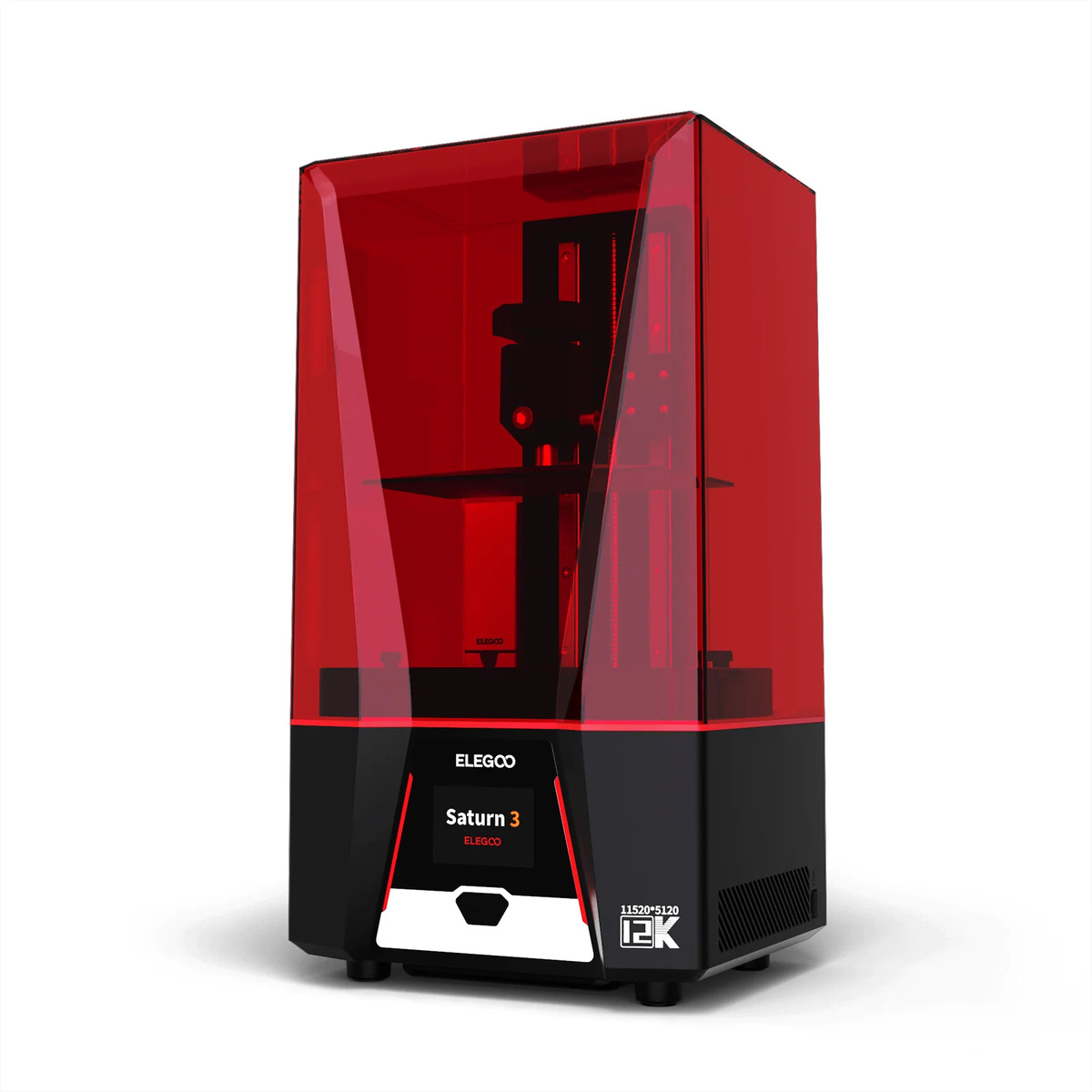

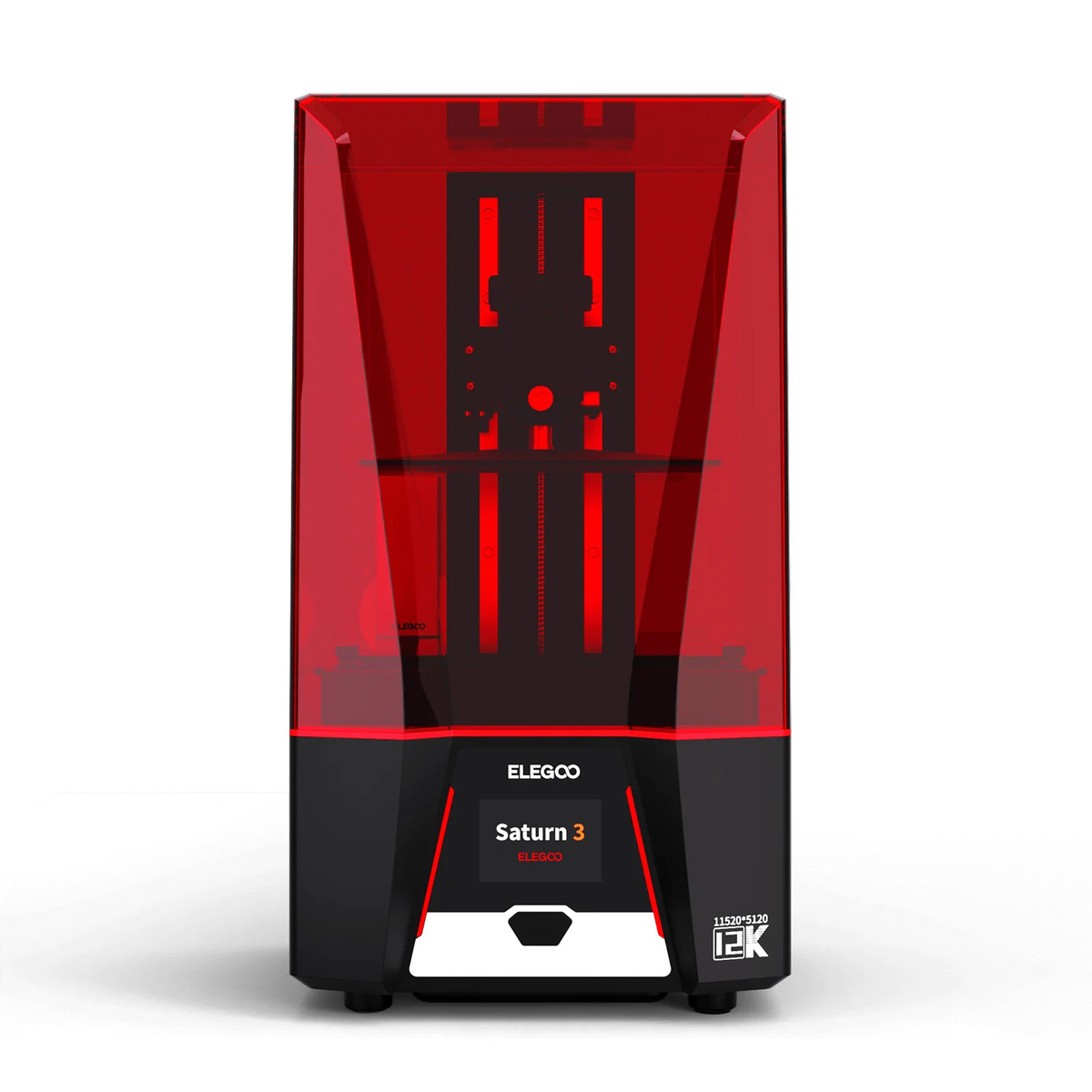

Elegoo Saturn 3 Resin 3D Printer (12k Mono LCD)

Main Features:

• 【10-Inch 12K Mono LCD】With a 10-inch 12K mono LCD boasting a stunning resolution of 11520x5120 and an XY resolution of 19x24μm, ELEGOO Saturn 3 is capable of producing highly detailed and intricate models with ease, at a printing speed of up to 70mm/h. The 9H hardness tempered glass protects the LCD screen from scratches and damage caused by resin dripping or penetration.
• 【Generous Build Volume】With a generous build volume of 218.88x122.88x250 mm³/8.62x4.84x9.84 inches, you can try to print larger models and more ambitious projects for greater flexibility and versatility.
•  【Fresnel Collimating Light Source】The COB light source and Fresnel collimating lens work together to emit a uniform light beam of 405nm wavelength, and ensure that the light angle reaches within 5°, light uniformity is over 90%, and light-scattering coefficient within 0.5%. This results in highly accurate and consistent prints with exceptional clarity and detail.
•  【Laser-carved Build Plate】The build plate with a laser-carved surface provides excellent adhesion, ensuring that your prints stick to the build plate for a higher printing success rate.
• 【Voxeldance Tango Software】It offers 3 printing modes: static mode and dynamic mode (including smooth mode and high-speed mode) to improve printing efficiency. The open-source GOO slice file format is compatible with third-party slice software, such as CHITUBOX and Lychee Slicer.
• 【Plug-in Air Purifier】The upgraded USB plug-in air purifier with a built-in activated carbon filter and plastic protective case ensures that harmful odor is purified during printing. In addition, you can choose the upcoming ELEGOO Mars MATE air purifier, which can remove up to 95% of VOCs for a safer environment to work in.

ELEGOO Saturn 3 MSLA 3D Printer

12K Printing Accuracy

ELEGOO Saturn 3 adopts a 10-inch 12K mono LCD with a resolution of 11520x5120 and an XY resolution of 19x24 microns, which allows for the production of intricate models with excellent details and exceptional sharpness. The replaceable 9H tempered glass effectively prevents scratches and damage to the LCD screen and prolongs its lifespan.

COB + Fresnel Collimating Lens

The COB light source paired with Fresnel collimating lens ensures a more perpendicular and uniform exposure across the screen, within a 5-degree light angle & 0.5% light-scattering coefficient, and 90% light uniformity, allowing you to print truly impressive models with smooth surfaces and sharp edges.

Upgraded Heat Dissipation System

The upgraded heat dissipation system includes 6 double heat-conducting copper tubes and 4 cooling fans on both sides of the light source for faster ventilation and better heat dissipation. This ensures that your printer is working at its best, prolonging its lifespan.

High Stable Structure

The dual linear guide rail design ensures that the Z-axis movement is quieter, more stable, and precise, reducing riffles on final prints.

The laser-carved build plate with excellent adhesion ensures that your prints stick to the build plate even when printing large models.

The non-slip hexagon socket leveling screws are designed for easy handling, making leveling fast and easy.

The printer's mid-plate is designed with a raised step to prevent resin from flowing inside the printer, keeping your machine components safe and clean.

Multiple Printing Modes

The Voxeldance Tango software is designed to improve your printing efficiency, offering static mode and dynamic printing mode (dynamic mode including smooth mode and high-speed mode). With the open-source GOO slice file format, you can use third-party slicing software, such as CHITUBOX and Lychee Slicer, for added flexibility and convenience.

Odor-free Printing Environment

Your printing safety is our concern, which is why we've included an upgraded USB-powered air purifier, with a plastic protective case to effectively protect the built-in activated carbon filter from damage and breakage during transportation. For extra peace of mind, you can also opt for the upcoming ELEGOO Mars MATE air purifier, which can remove up to 95% of VOCs for a safe and comfortable workspace.
