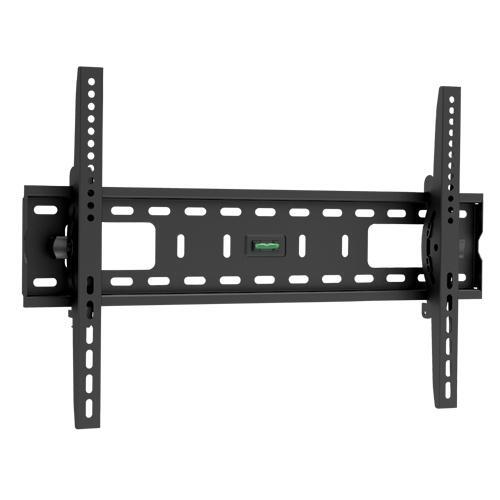

Brateck Classic Heavy-Duty Tilting Curved & Flat Panel TV Wall Mount

Easy to use and install, the popular model PLB-33L is designed to fit any 37''-70" curved & flat panel TVs up to 75kg/165lbs. This unit mounts in tilting position and tilts up to a 10° to position the screen for an optimal viewing experience. Integrated bubble level is included for easy installation alignment.

FEATURES
●Easy-Grip Knobs: for quick tilt and lock
●Open Architecture: provides increased ventilation and easier access to wires
●Integrated Bubble Level: assures alignment

Product Category: Tilt TV Wall Mount
Rank: Standard
Material: Steel
Surface Finish: Powder Coating
Color: Matte Black
Dimensions: 63x660x440mm (2.5"x26"x17.3")
Fit Screen Size: 37"-70"
Fit Curved TV: Yes
Mounting Hole Pattern : VESA & Universal
VESA Compatible: 200x200,300x300,400x200,400x400,600x400
Max. VESA: 600x400
Weight Capacity: 75kg (165lbs)
Strength Tested: 3 Times Approved
Profile: 63mm (2.5")
Tilt Range: +10°~-10°
Screen Freely Tilting: Yes
Installation: Double Stud(406mm/450mm/600mm),Solid Wall
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
Cable Management: No
Anti-theft: No
Bubble Level: Built-in Bubble Level (Integrated on Wall Plate)
